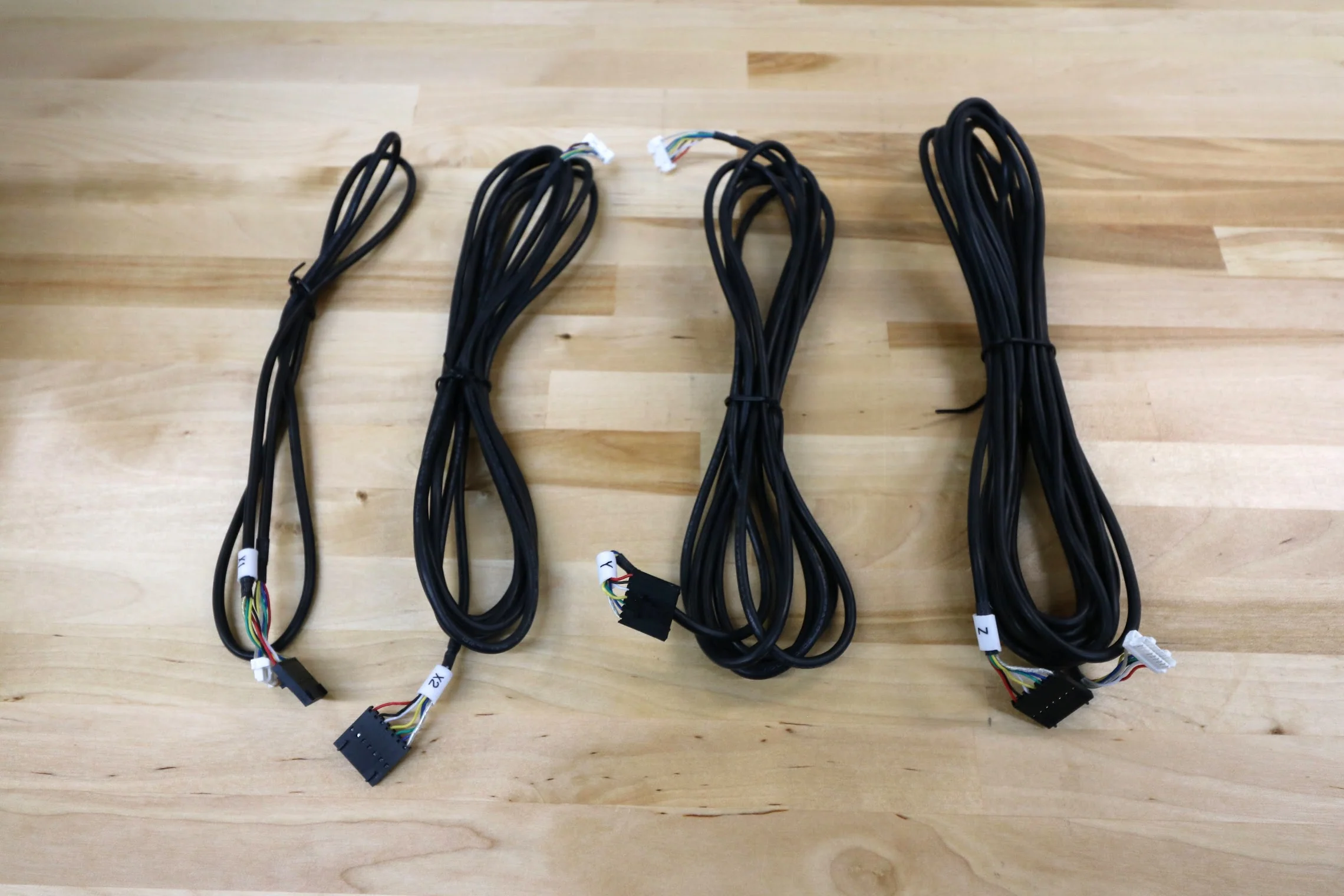

Genesis v1.3+ Encoder Cables
These cables connect the four rotary encoders to the Farmduino. Sold individually. Note: These lengths are for Genesis (1.5m x 3m) machines, NOT Genesis XL.
Lengths:
- 0.7m (X1)
- 2.3m (X2)
- 2.7m (Y)
- 2.6m + 1.8m (ZY + ZZ)
Cores: 7
Gauge: 20
Encoder Connector: 8 pin connector
Farmduino Connector: 2.54mm pitch 7-pin dupont connector with locking tab
Outer Color: Black
Select Axis
From $7.00
Original: $20.00
-65%Genesis v1.3+ Encoder Cables—
$20.00
$7.00Genesis v1.3+ Encoder Cables
These cables connect the four rotary encoders to the Farmduino. Sold individually. Note: These lengths are for Genesis (1.5m x 3m) machines, NOT Genesis XL.
Lengths:
- 0.7m (X1)
- 2.3m (X2)
- 2.7m (Y)
- 2.6m + 1.8m (ZY + ZZ)
Cores: 7
Gauge: 20
Encoder Connector: 8 pin connector
Farmduino Connector: 2.54mm pitch 7-pin dupont connector with locking tab
Outer Color: Black
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
These cables connect the four rotary encoders to the Farmduino. Sold individually. Note: These lengths are for Genesis (1.5m x 3m) machines, NOT Genesis XL.
Lengths:
- 0.7m (X1)
- 2.3m (X2)
- 2.7m (Y)
- 2.6m + 1.8m (ZY + ZZ)
Cores: 7
Gauge: 20
Encoder Connector: 8 pin connector
Farmduino Connector: 2.54mm pitch 7-pin dupont connector with locking tab
Outer Color: Black
